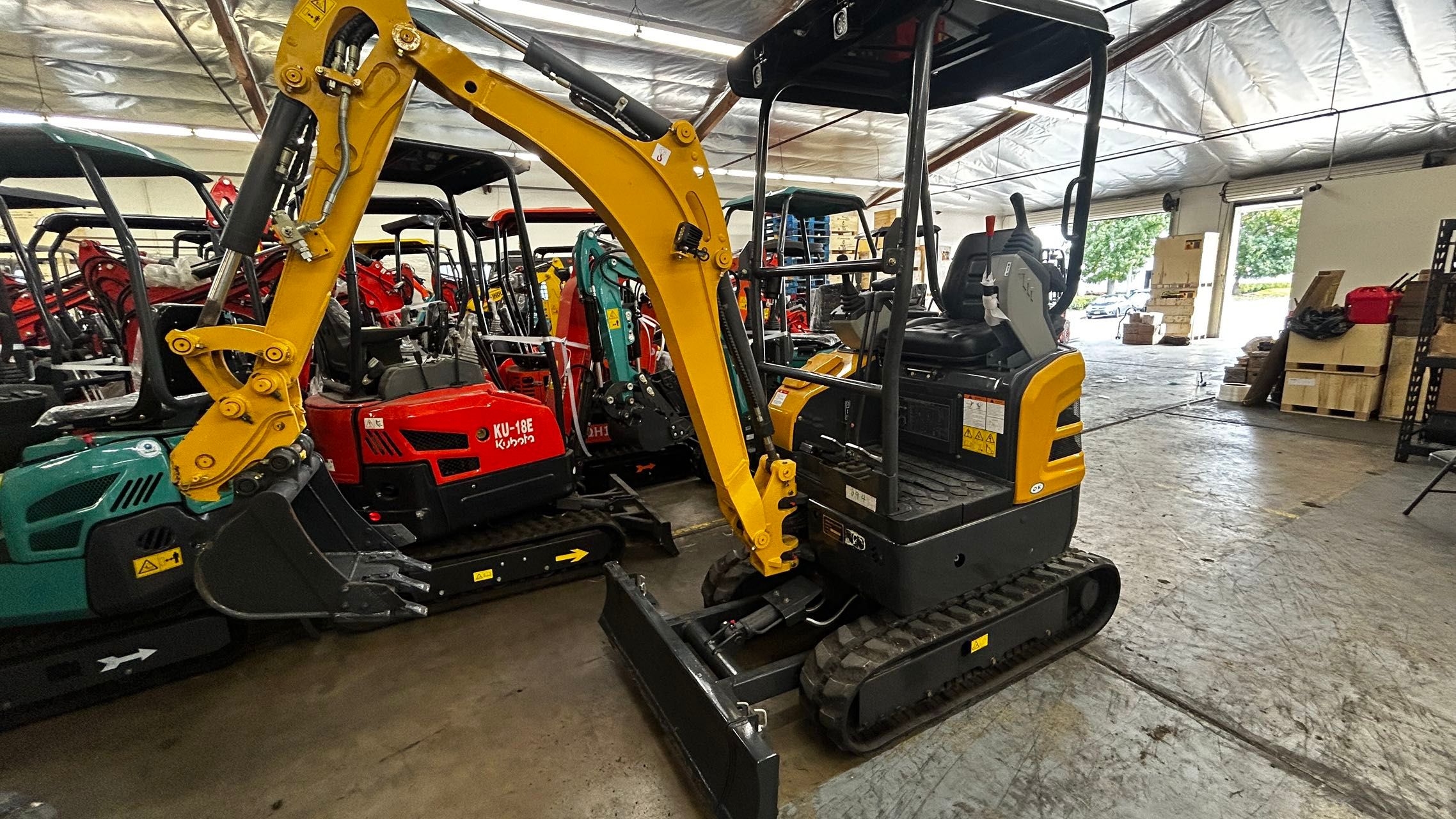

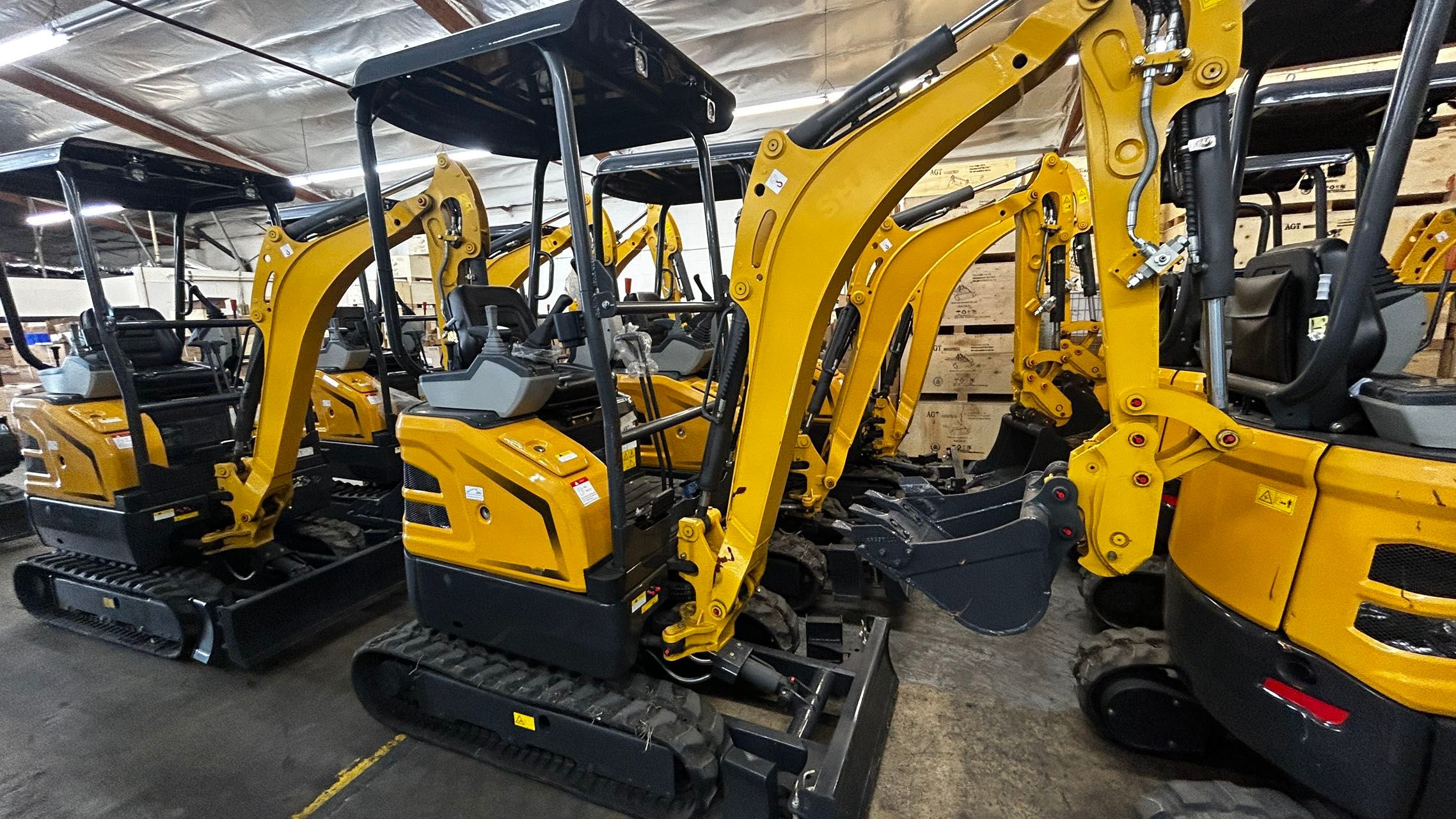

1.8 Ton, Kubota Diesel Engine Mini Excavator | AGT-SE17SR

The AGT 1.8 Ton Mini Excavator is engineered for exceptional performance in tight spaces, delivering power and versatility for your toughest jobs. Powered by a Kubota 3-cylinder Tier 4 diesel engine, this compact powerhouse offers efficient fuel consumption and low emissions, making it a reliable choice for environmentally conscious projects.

Technical Data:

• Operation Weight: 1.8 Ton


• Engine: Tier 4 Diesel Engine


• Horse Power: 13.5


• Max Angle: 30 Degree

Features:

•
  Kubota Compact 3-Cylinder Tier 4 Diesel Engine: Provides smooth, reliable power with superior fuel efficiency and reduced emissions.


•

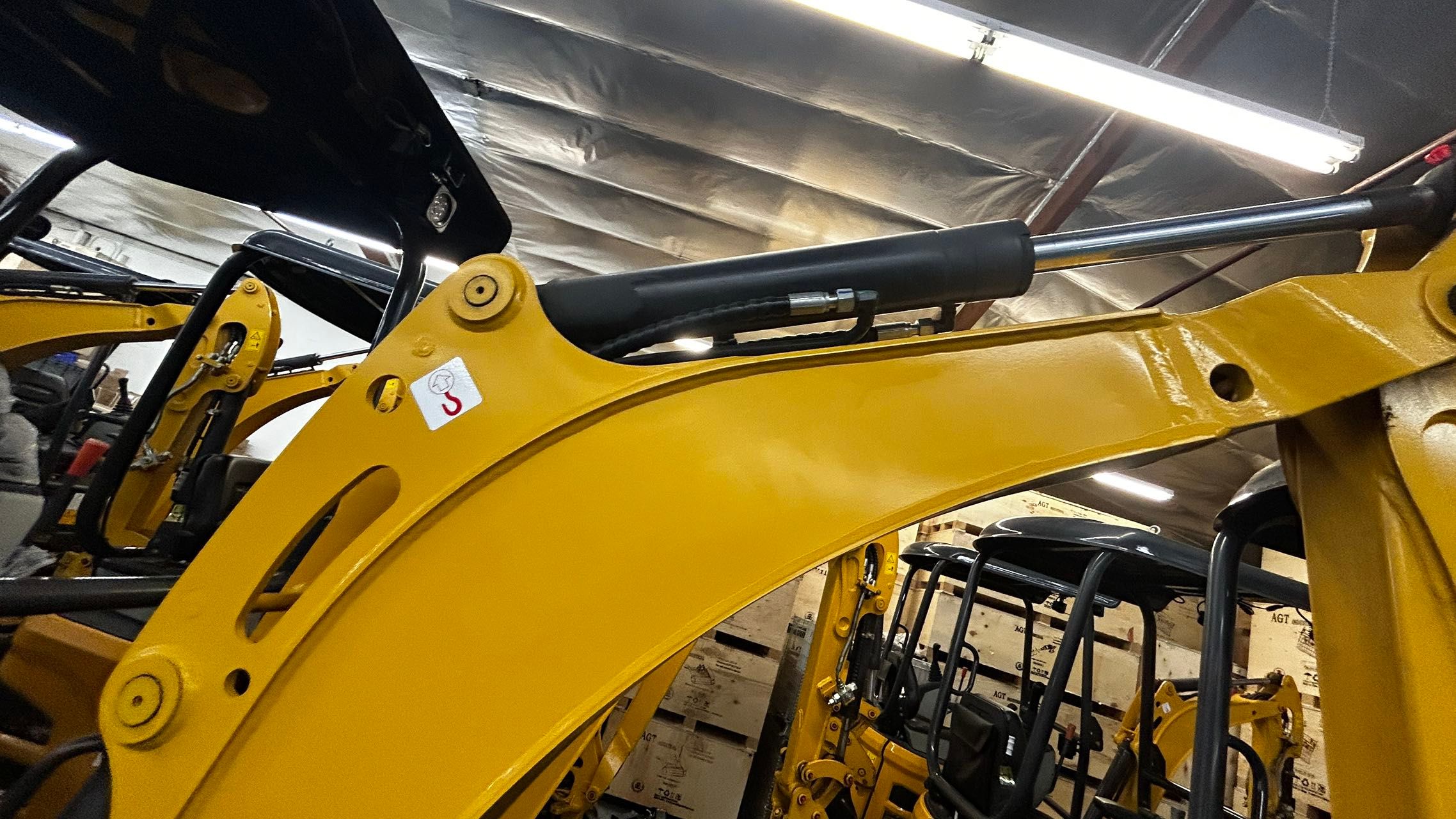

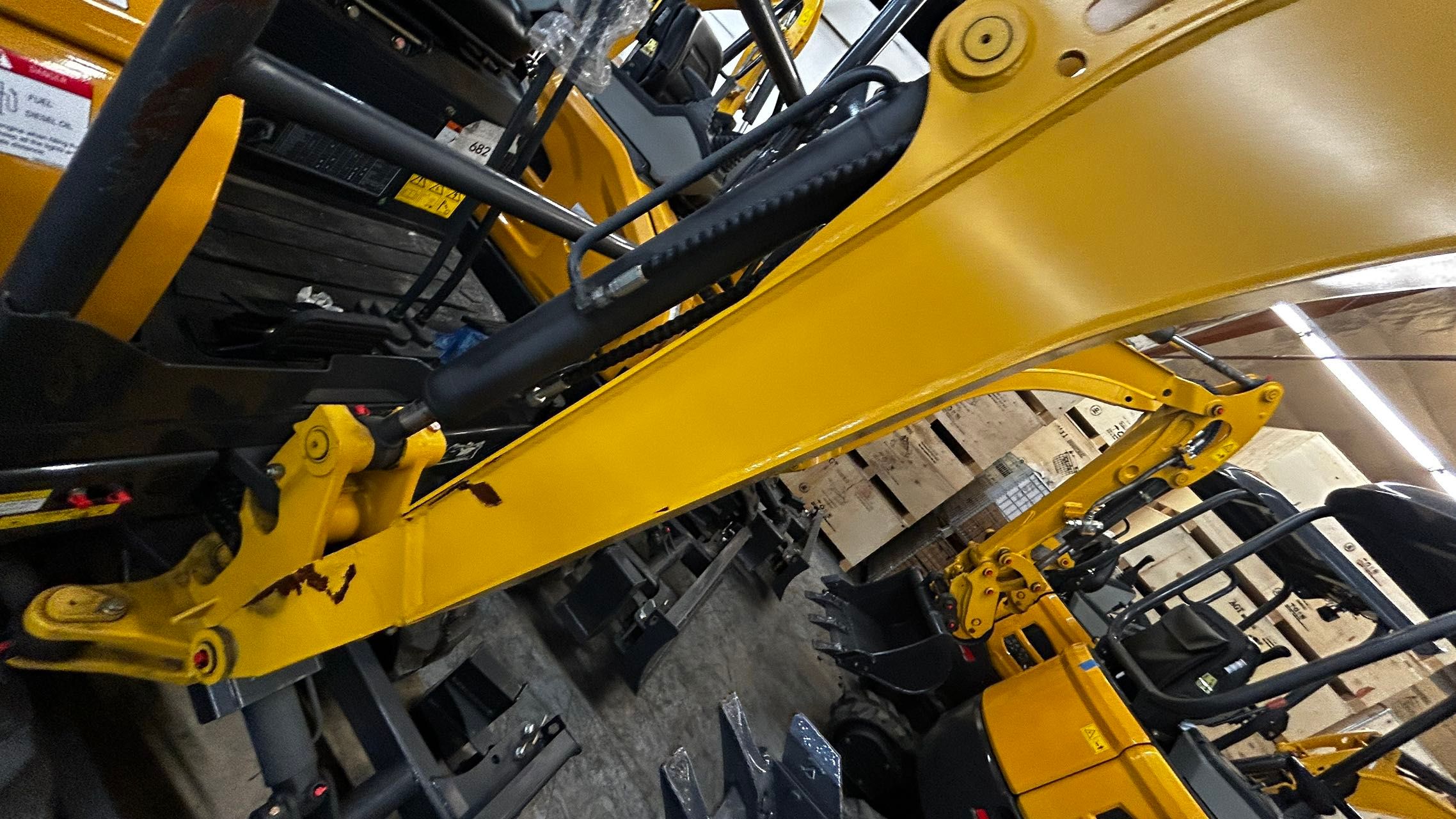

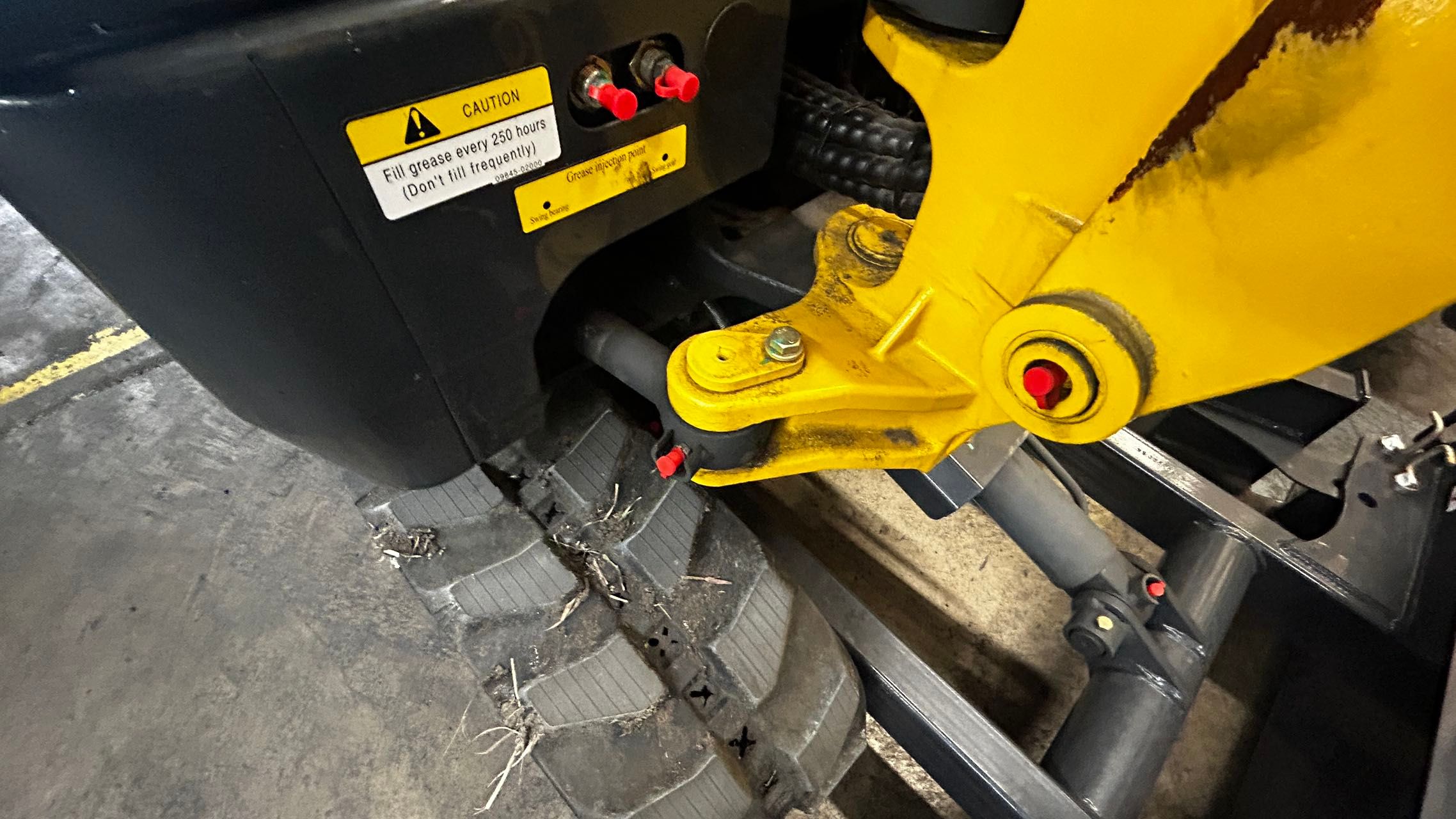

  Swing Boom: Offers enhanced maneuverability, allowing the operator to work in confined spaces and access hard-to-reach areas.


•

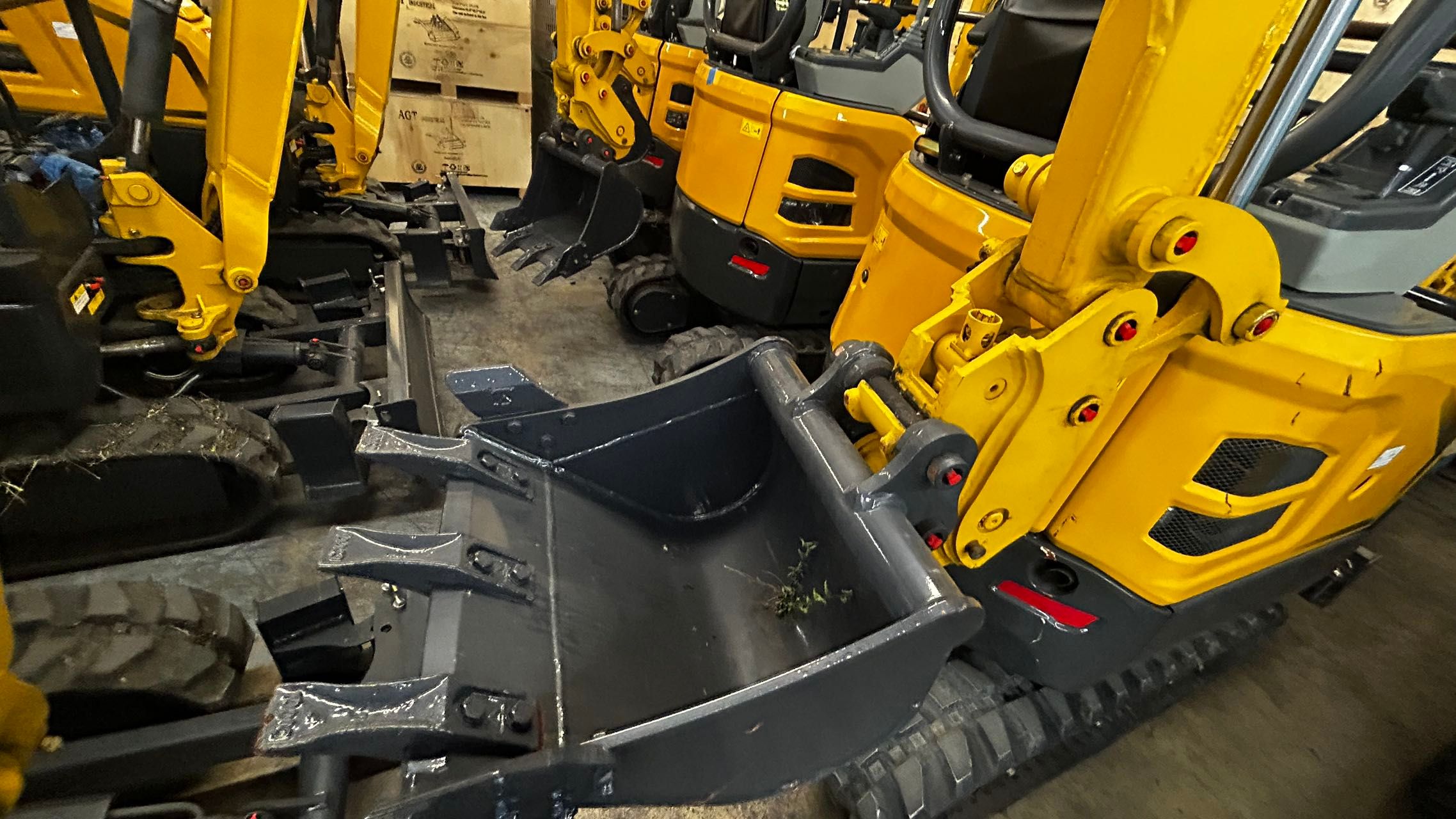

  Quick Attach: Swiftly change attachments to increase jobsite productivity without the hassle.


•
  2-Speed Travel: Switch between high and low speed settings for faster travel over long distances or better control in rough terrain.


•

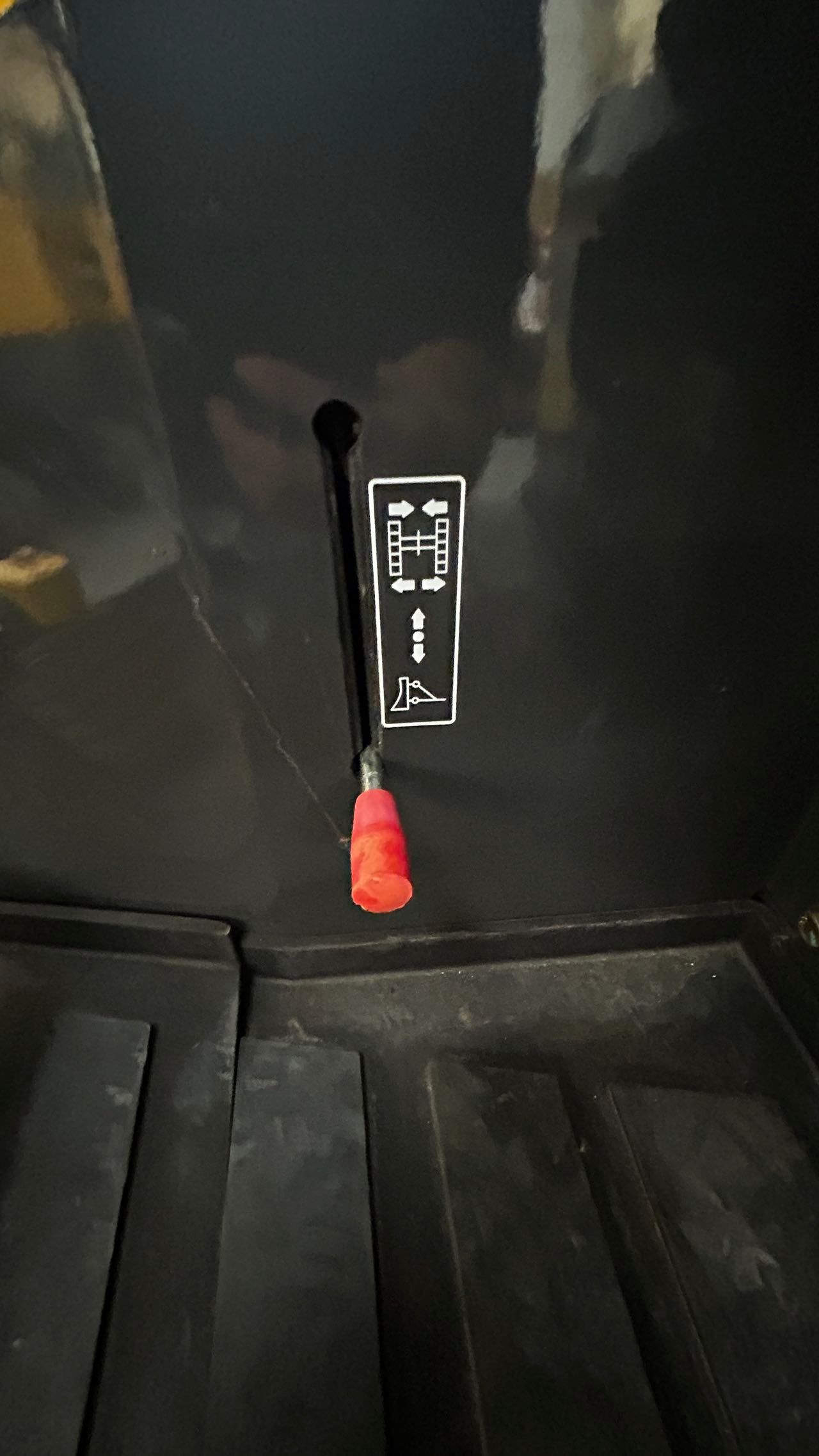

  Expandable Tracks: Easily adjust the track width to suit the job at hand, offering superior stability and balance on uneven ground.


•

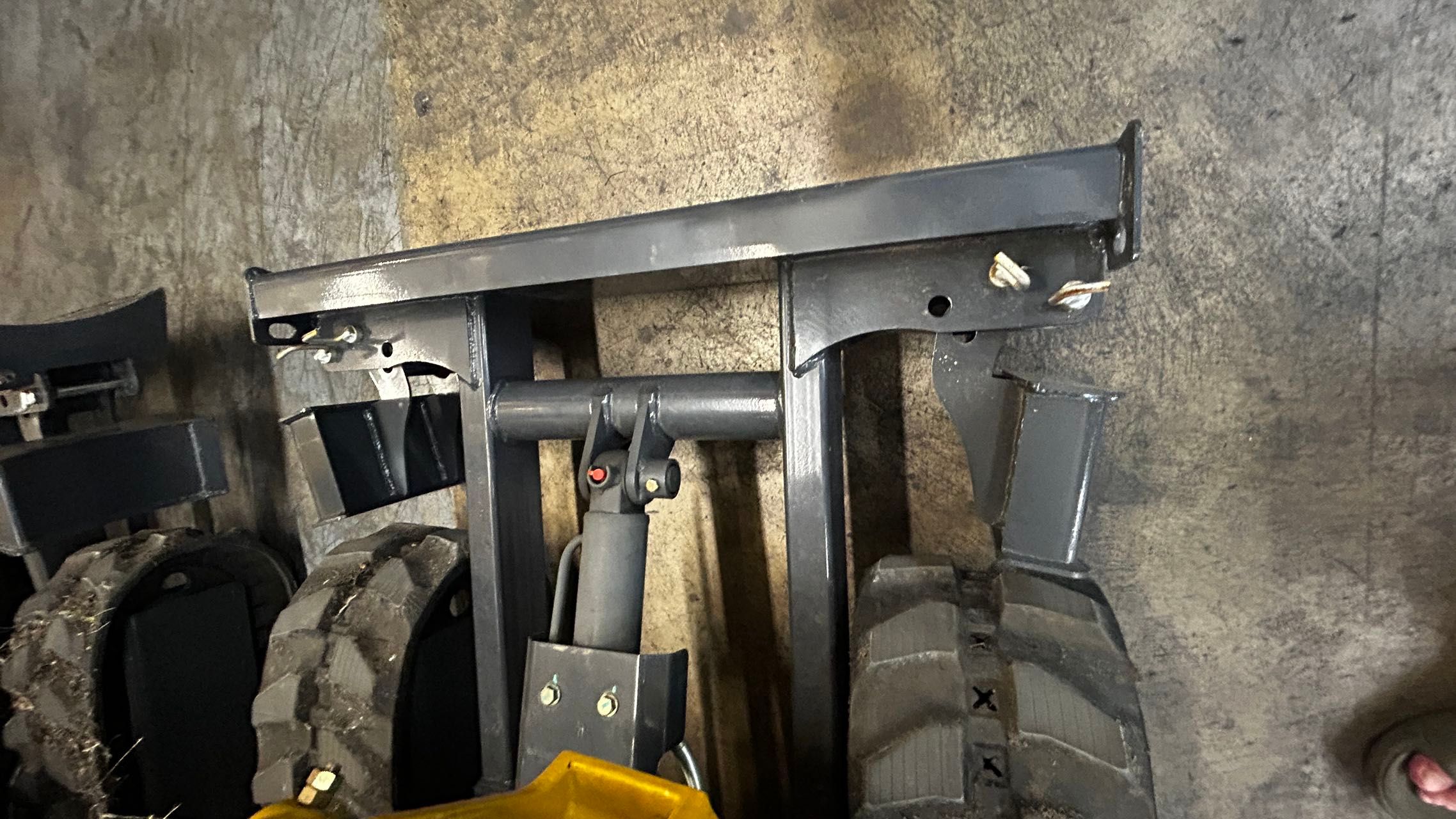

  Foldable Front Blade: Provides additional digging and grading capability while being compact for storage and transport.


•
  Engine Monitoring System: Stay informed with real-time diagnostics and alerts, ensuring optimal performance and reducing downtime.

Specific Data:

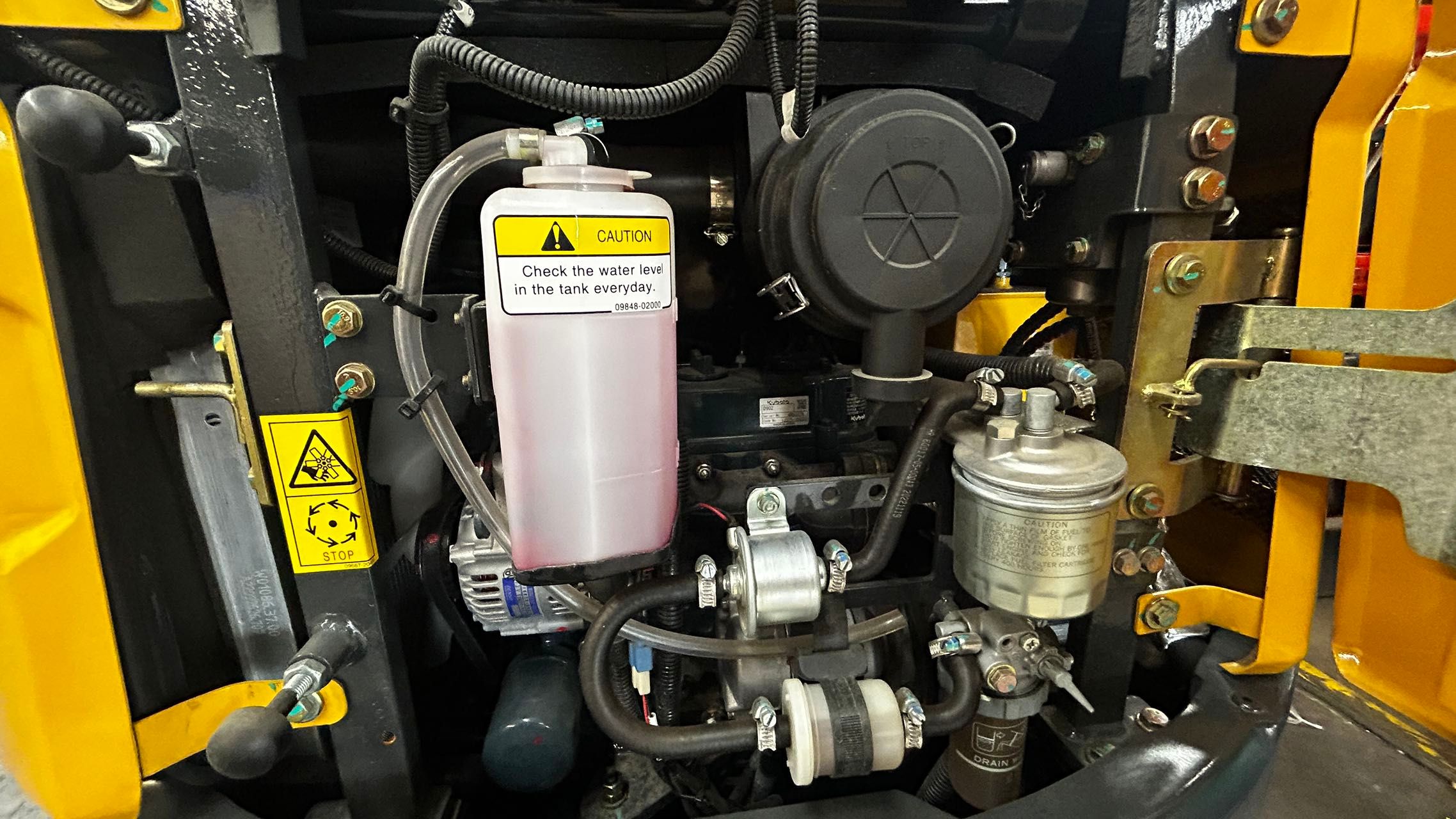

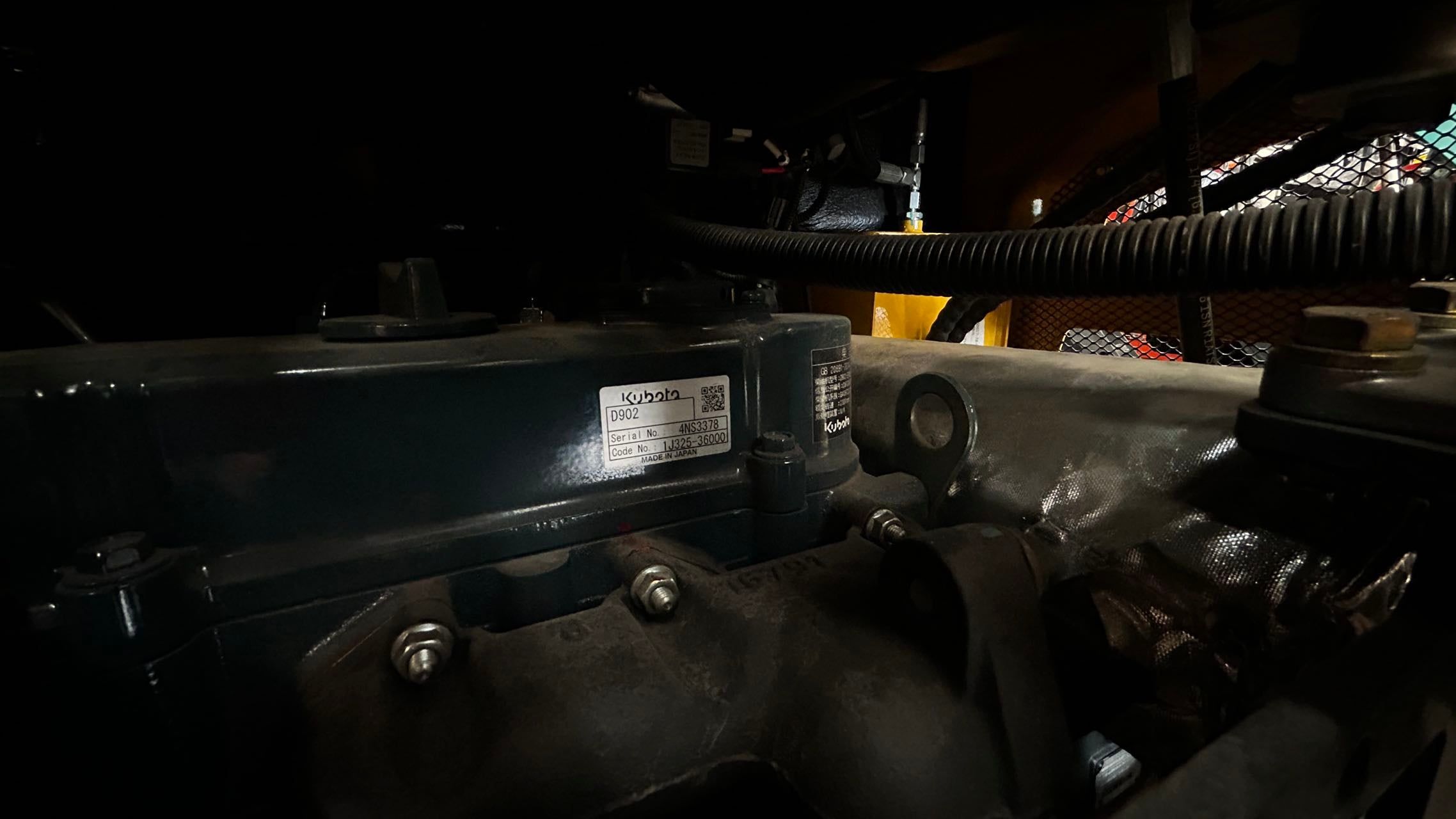

Engine:

• Brand: Kubota


• Model: D902


• Type: 3-cylinder, Tier 4 Diesel Engine


• Power Output: 16 HP (11.8 kW) at 2,300 RPM

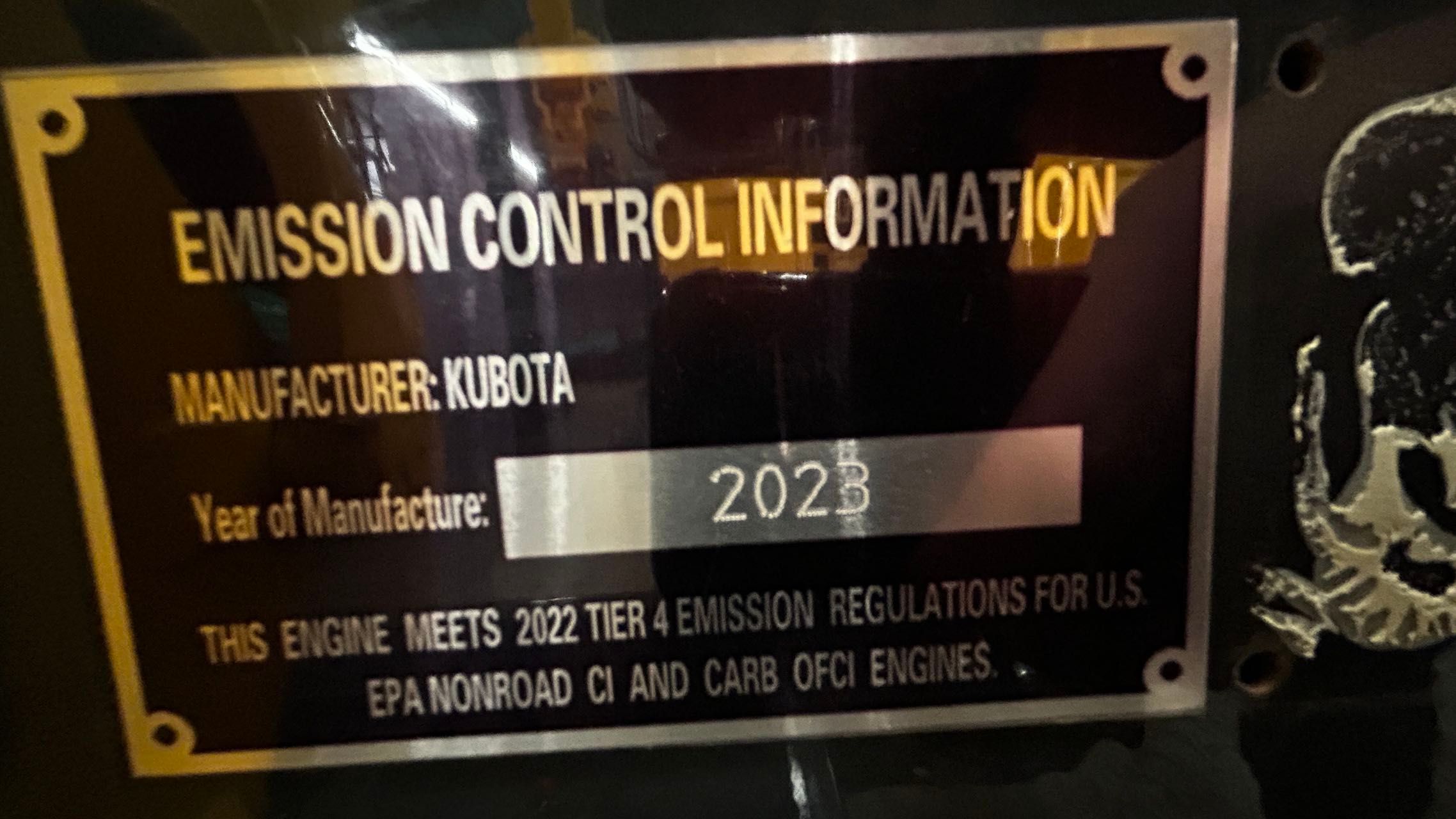

• Emissions Compliance: EPA Tier 4F / Euro V

Performance:

• Operating Weight: 1,800 kg


• Maximum Digging Depth: 2,270 mm


• Maximum Digging Height: 3,535 mm


• Maximum Dumping Height: 2,445 mm


• Maximum Digging Radius: 3,910 mm


• Maximum Vertical Digging Depth: 1,910 mm


• Maximum Digging Distance at Ground Level: 3,845 mm


• Minimum Turning Radius (Working Device): 1,495 mm


• Maximum Lifting Height of Bulldozer Blade: 280 mm


• Maximum Digging Depth of Bulldozer Blade: 190 mm

Dimensions:

• Overall Length: 3,575 mm


• Overall Width: 990 mm (retractable to 1,300 mm)


• Overall Height (to top of cab): 2,405 mm


• Overall Height (to top of boom): 1,105 mm


• Ground Length (During Transport): 2,440 mm


• Ground Clearance of Counterweight: 460 mm


• Minimum Ground Clearance: 145 mm


• Tail Turning Radius: 650 mm


• Track Length: 1,593 mm


• Track Gauge: 760 mm (adjustable to 1,070 mm)


• Standard Track Shoe Width: 230 mm


• Turntable Width: 990 mm

Undercarriage:

• Track Type: Rubber Tracks


• Track Width: 990 mm (adjustable to 1,300 mm)

Additional Features:

• Swing Boom: Equipped


• Operator Cabin: Enclosed with ROPS (Roll-Over Protective Structure)

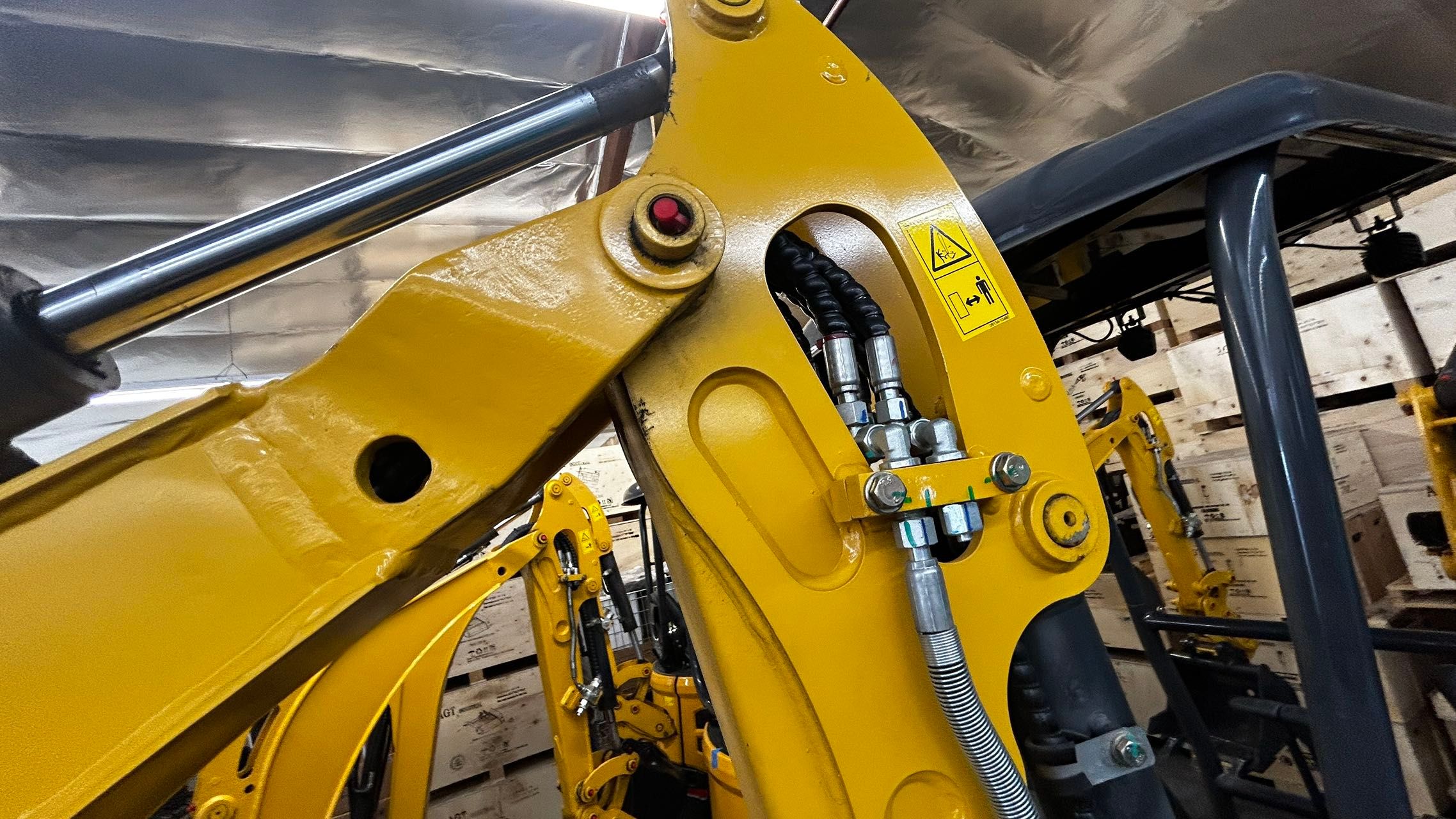

• Hydraulic System: Auxiliary hydraulics for attachments


• Controls: Pilot joystick controls


• Blade: Dozer blade with adjustable height
