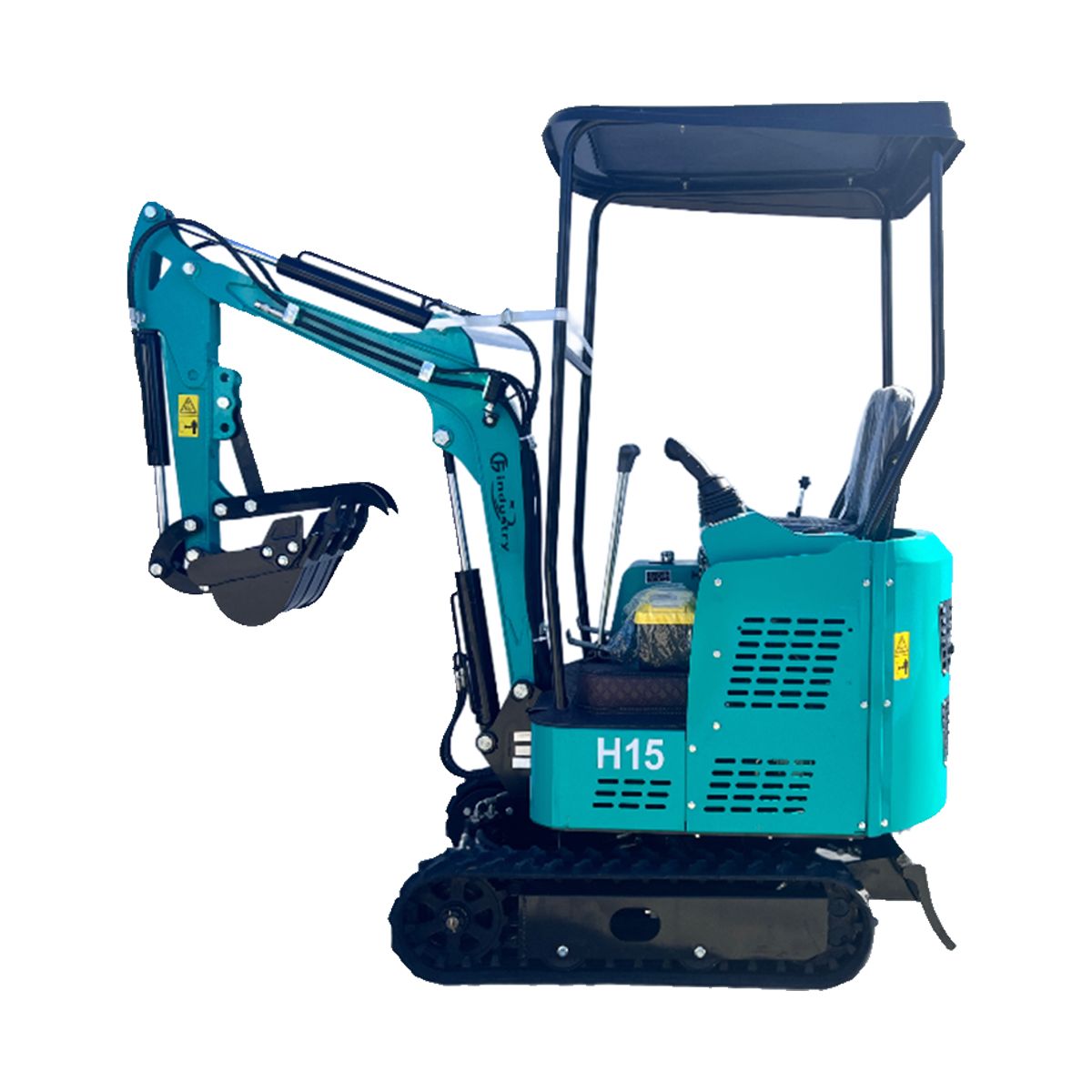

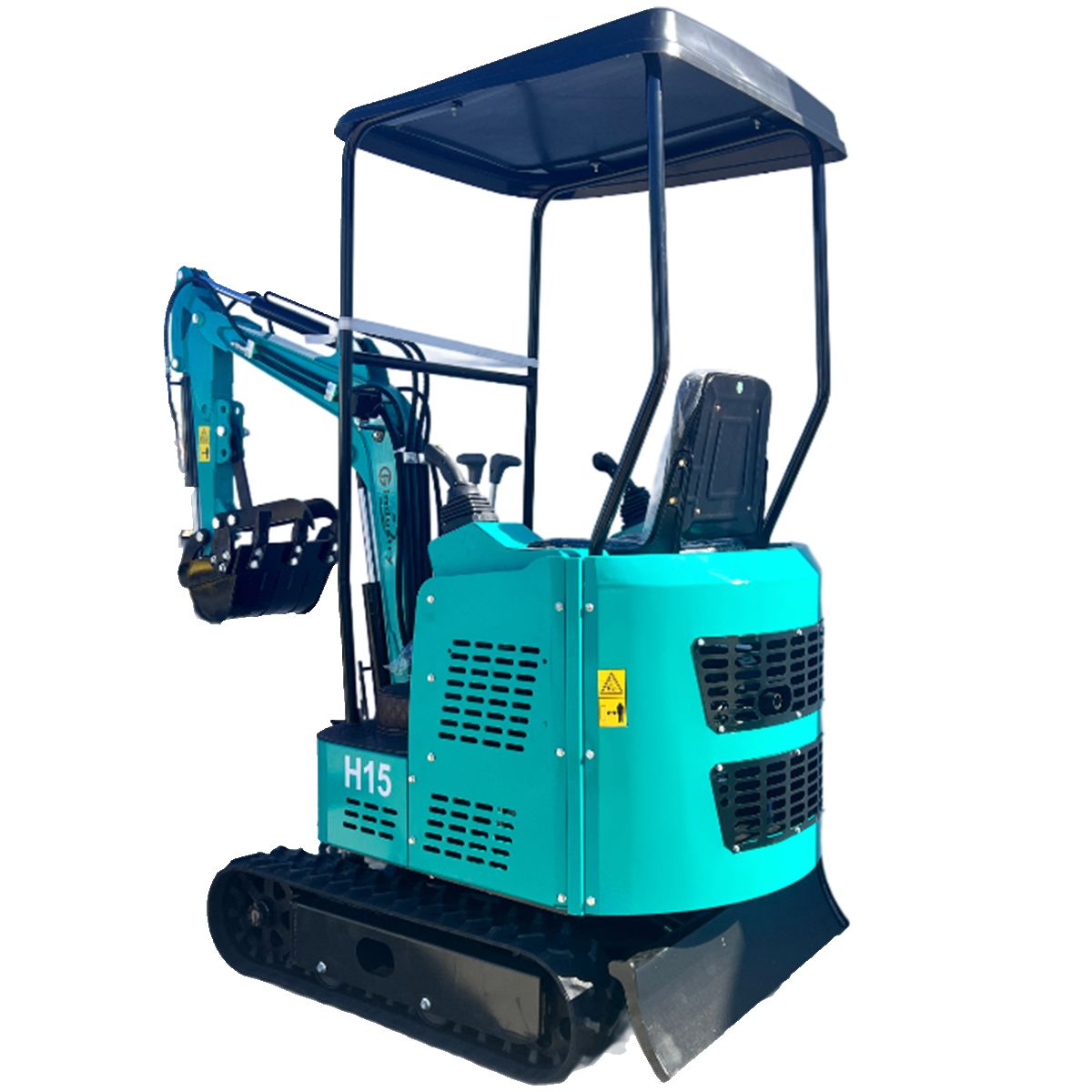

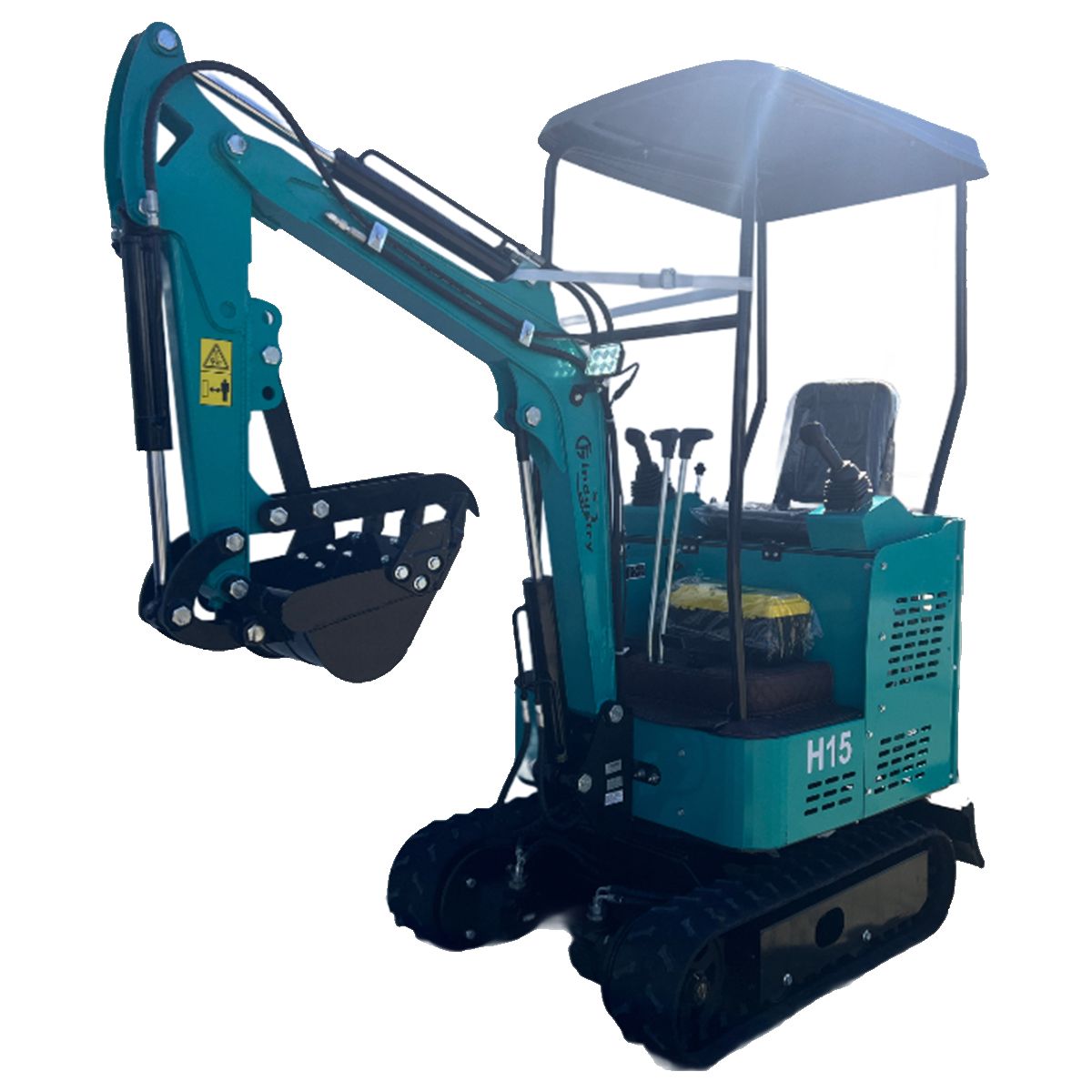

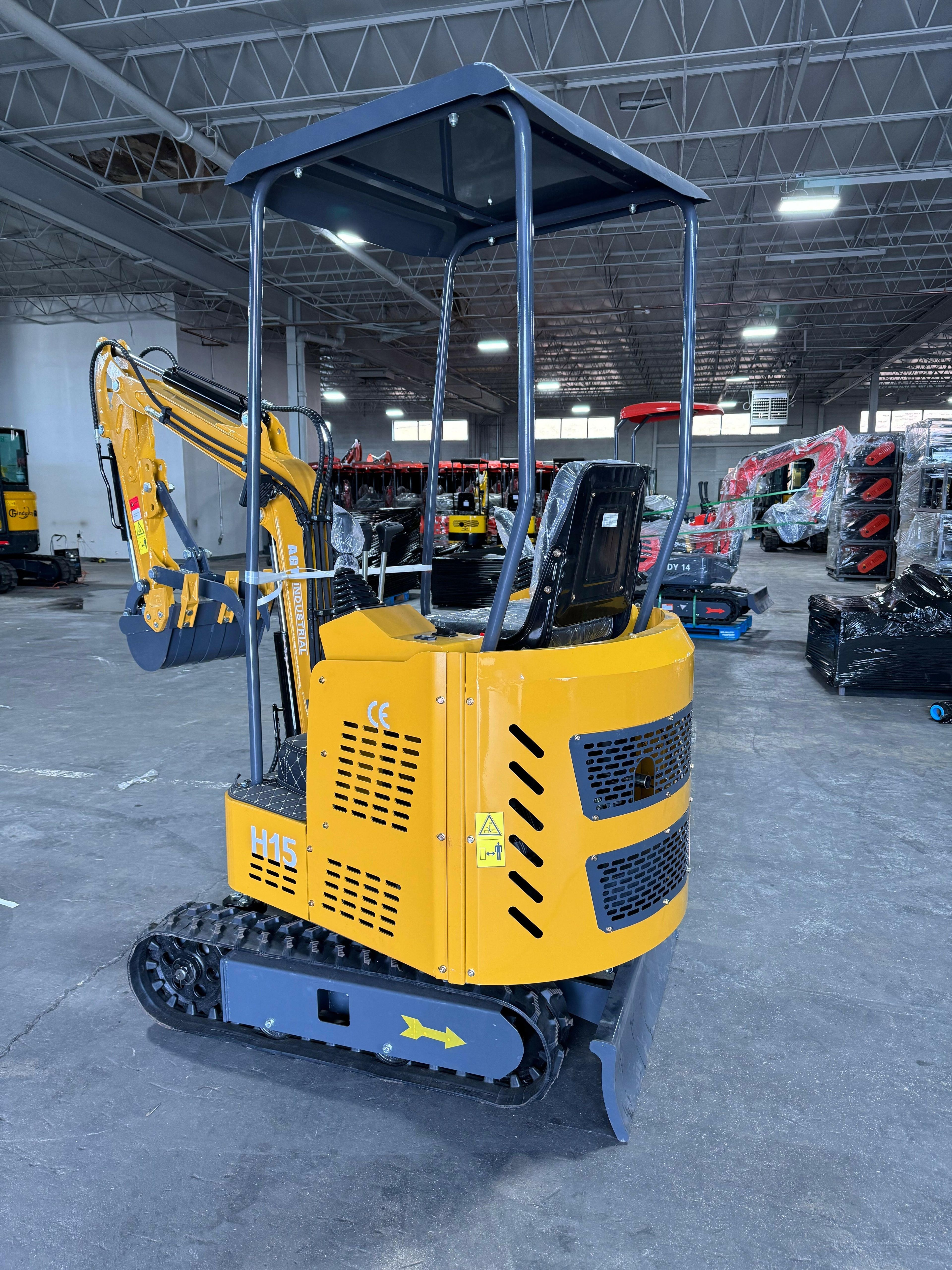

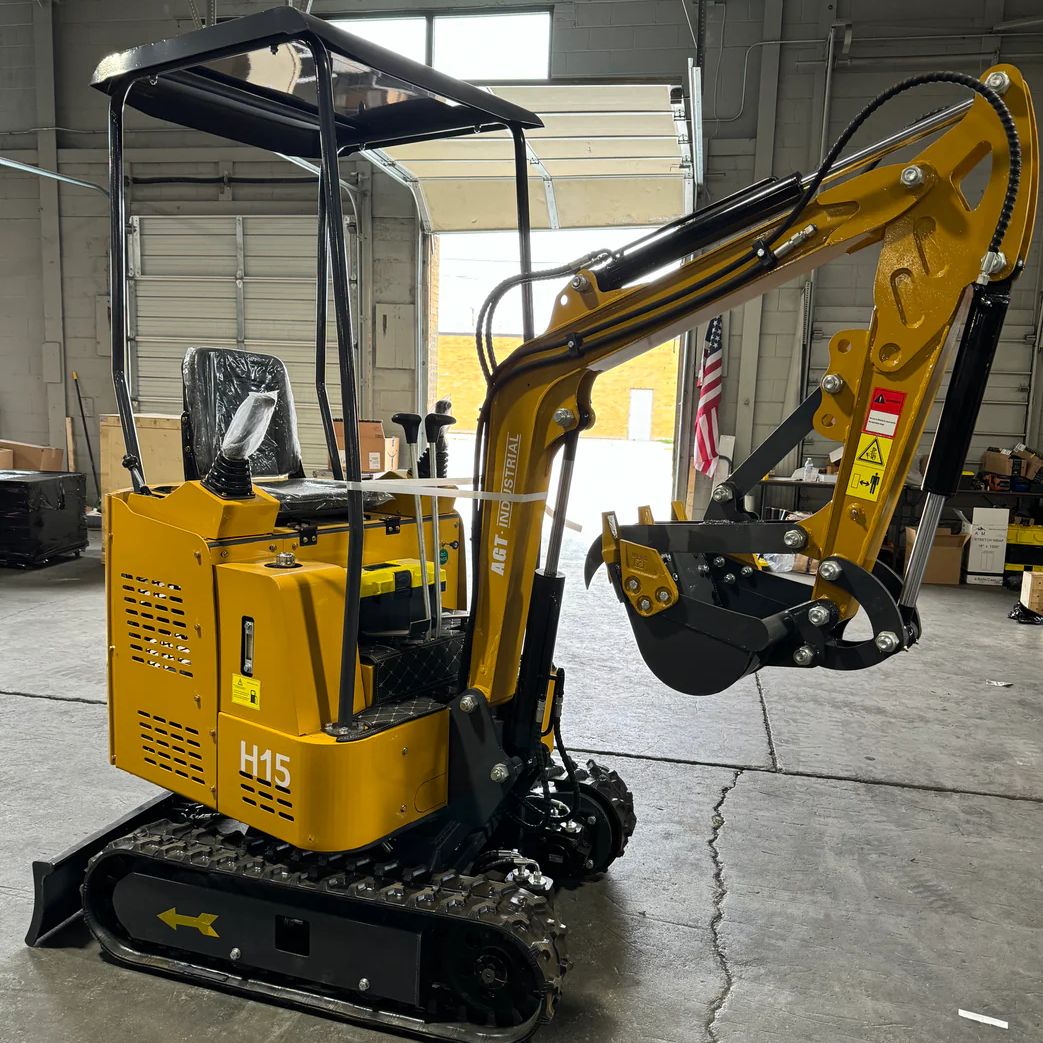

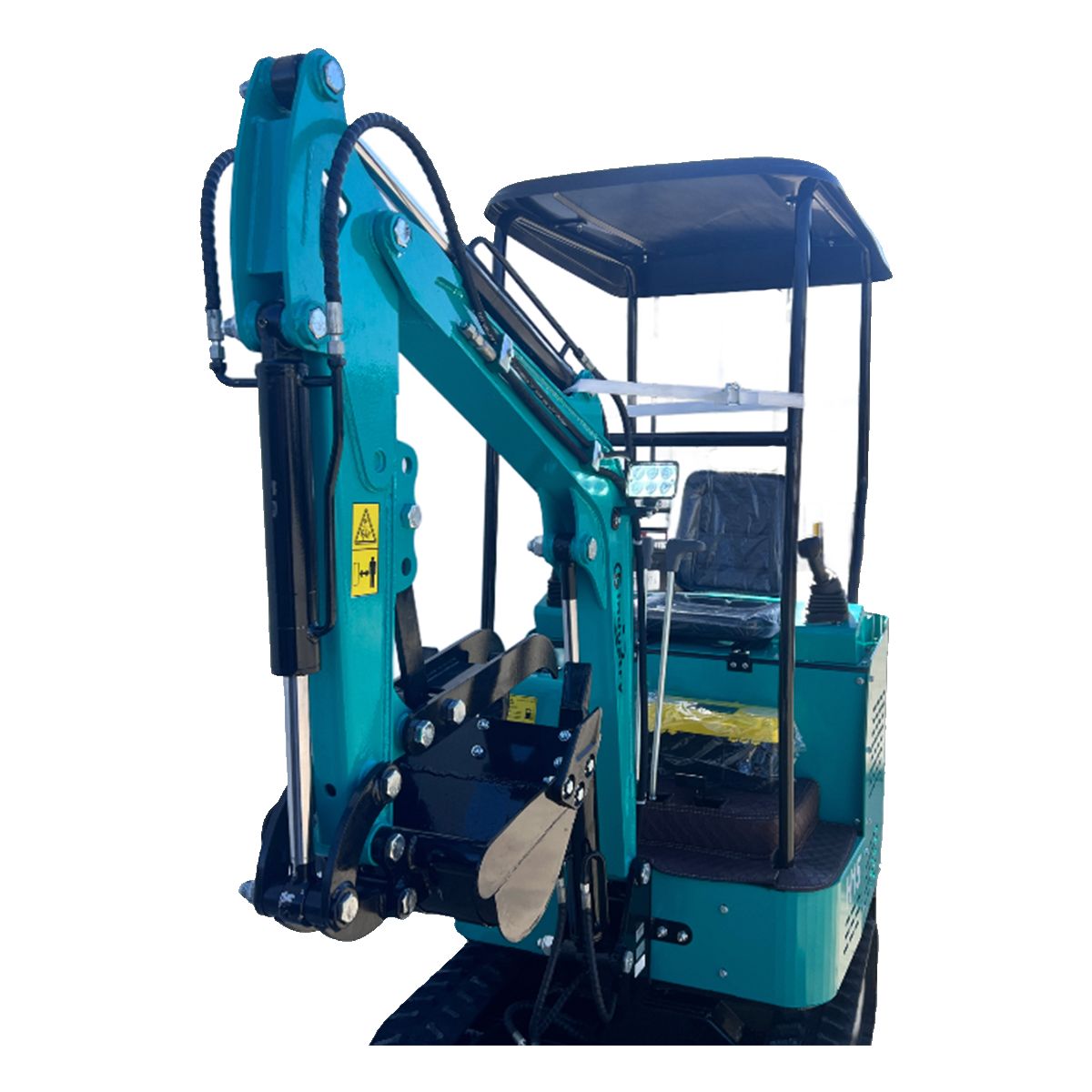

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R

$5,807.00

-60%

local_fire_department

Deals ends in :

Title

Default Title

Quantity

We will need a direct phone number for the carrier to contact you with for final delivery

Dimension

Operating Weight: 1 Tons (2,200 lbs)
Overall Length: 2,140 mm (84 in)
Overall Width: 1,000 mm (40 in)
Overall Height: 2,190 mm (86 in)
Track Width: 180*72*37 (Width*Pitch Length*Links)

Working Range

Max Digging Depth: 1,650 mm (65 in)
Max Digging Height: 2,610 mm (102.5 in)
Max Dumping Height: 1,850 mm (73 in)
Max Reach at Ground: 2,815 mm (111 in)
Blade Width: 950 mm (37 in)
Blade Height: 220 mm (8.5 in)
Blade Max Lifting Height: 295 mm (11.5 in)
Blade Max Drop Depth: 270 mm (10.5 in)

Engine

Engine Brand: Rato
Fuel Type: Gasoline
Model: R420D
Rated Power: 10 kW (13.5 HP)
Displacement: 420 cc
Fuel Capacity: 6.6 L (1.7 gal)
Fuel Consumption: 0.5-1.1 L/hr
Hydraulic Flow Rate: 45 L/min (4.2 GPM)
Hydraulic Pressure: 18 MPa (2320 PSI)
Hydraulic Tank Capacity: 18 L (4.7 gal)

Features

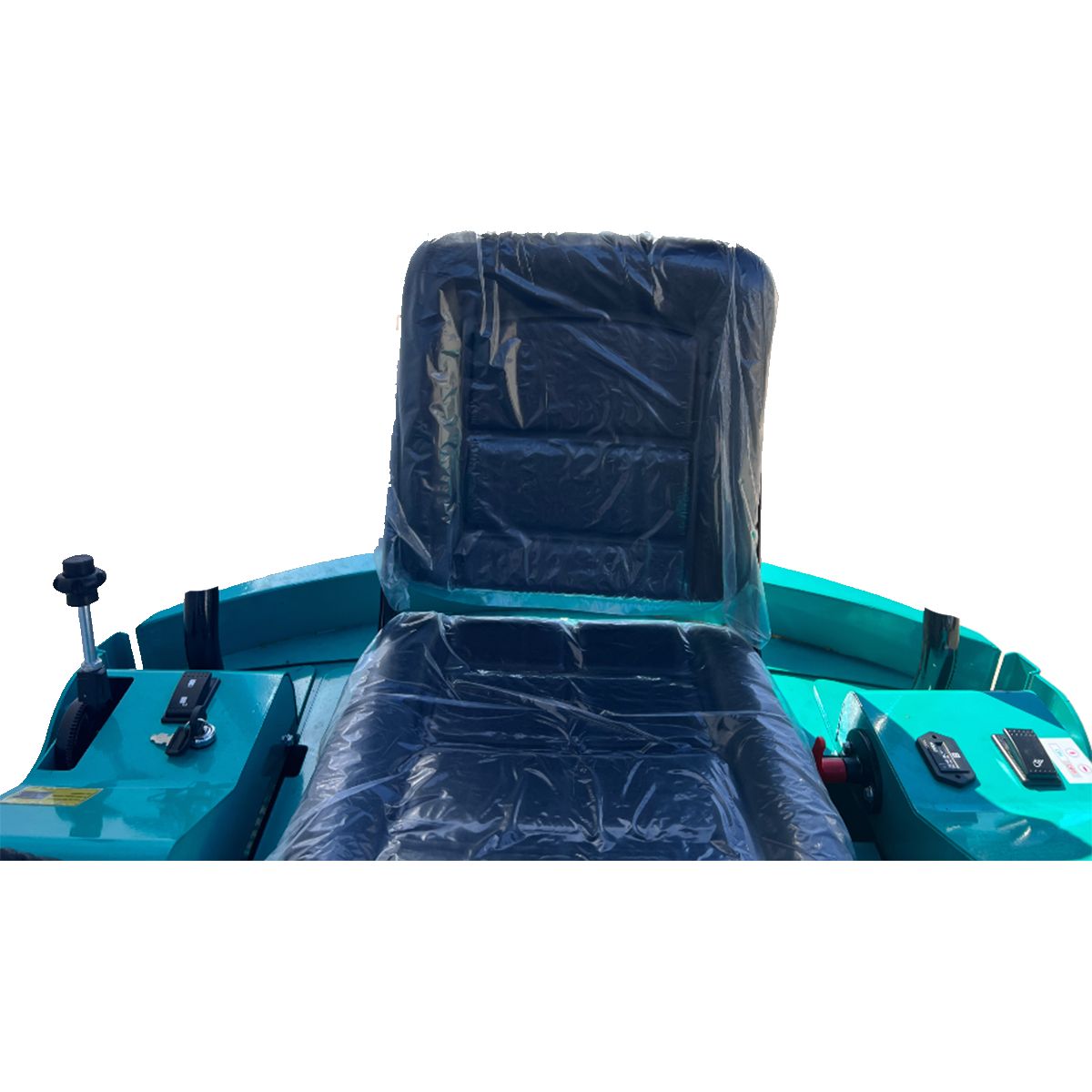

Pilot Control
LED Light
