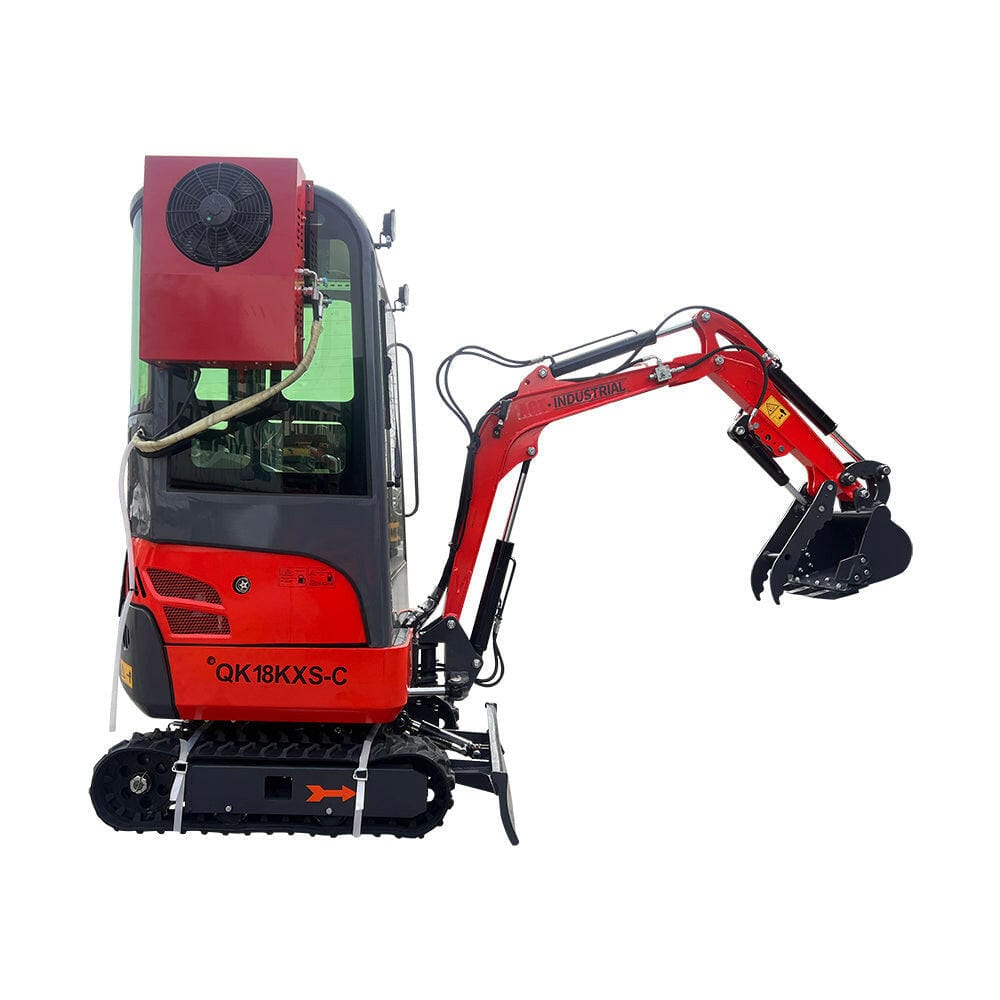

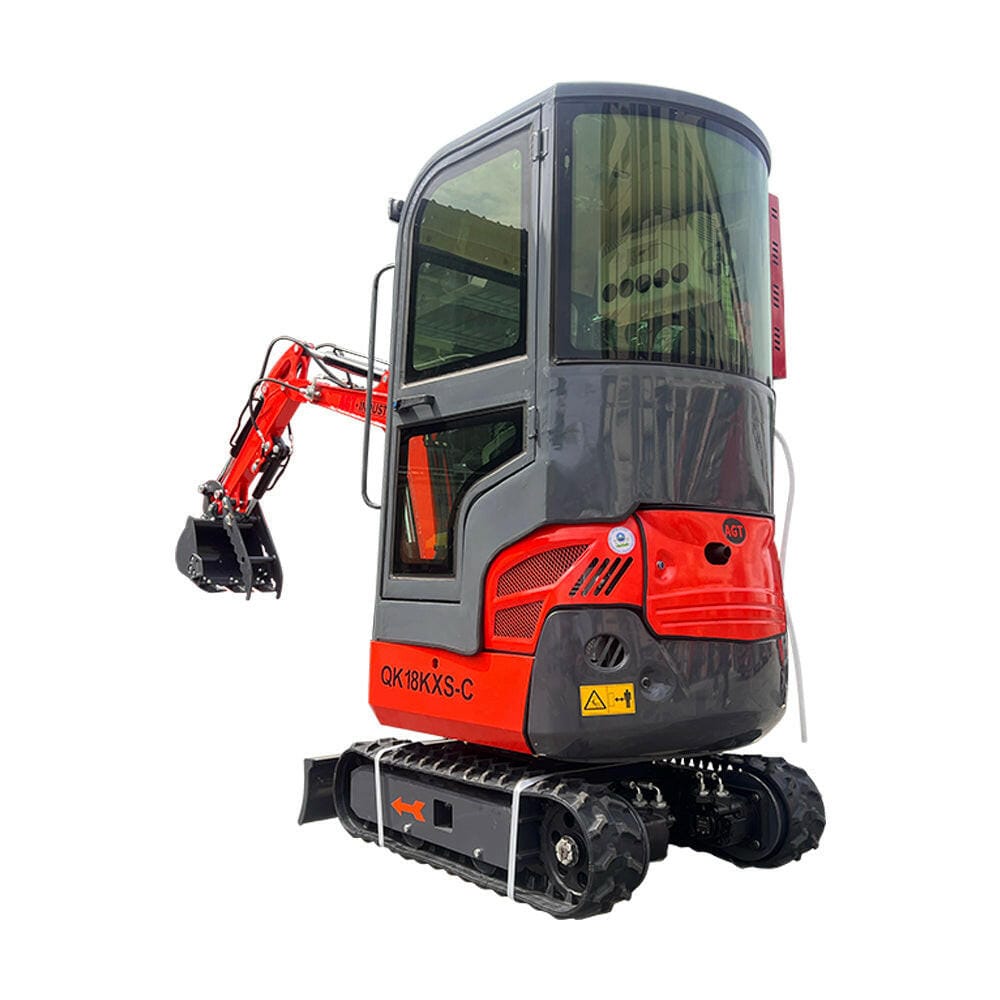

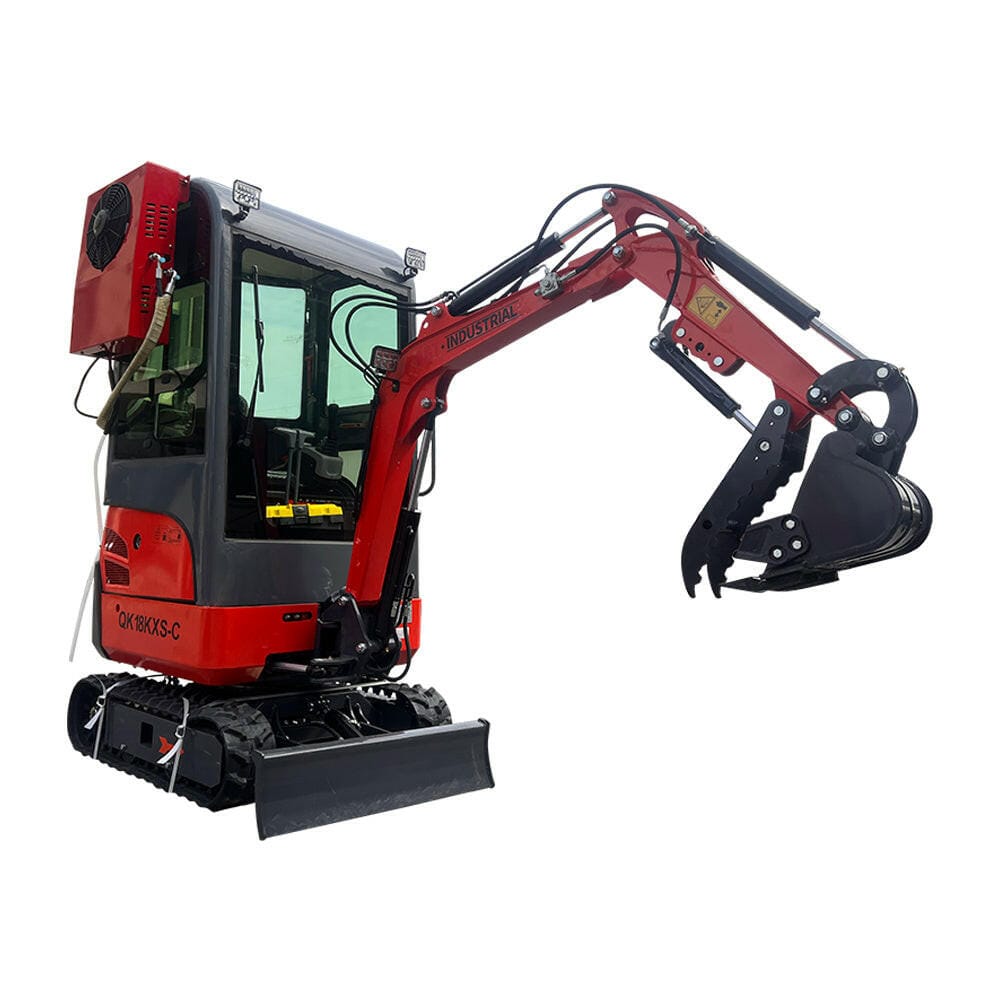

1-Ton, Kubota Engine Mini & Small Excavator w/Air Conditioning, Side Swing & Enclosed Cab | AGT-KH18K-CC

$3,270.00
$6,270.00
-60%
local_fire_department

Deals ends in :

Quantity

Technical Data:



  • Operation Weight: 1 Ton

  • Engine: Kubota Diesel Engine

  • Equipped with Air Conditioned Enclosed Cabin

  • Equipped with Side Swing


Engine:



  • Brand: Kubota

  • Model: D722

  • Type: 3-cylinder diesel engine

  • Power Output: 10.2 kW

  • Maximum Speed: 3,600 RPM

  • Emissions Compliance: Tier 4


Performance:



  • Operating Weight: 980 kg (2,160 lbs)

  • Maximum Digging Depth: 1,693 mm (66.7 inches)

  • Maximum Digging Height: 2,560 mm (100.8 inches)

  • Maximum Loading Height: 1,800 mm (70.9 inches)

  • Minimum Rotation Radius: 3,060 mm (120.5 inches)

  • Travel Speed: 0-1.8 km/h

  • Climbing Ability: 15°


Dimensions:



  • Overall Length: 2,925 mm (115.2 inches)

  • Overall Width: 958 mm (37.7 inches)

  • Overall Height: 2,422 mm (95.4 inches)


Hydraulic System:



  • Main Pump Type: GP510803

  • Rated Set Pressure: 25 MPa

  • Maximum Flow Rate: 21.6 L/min

  • Multi-Circuit Valve: 4 mechanical + 4 hydraulic

  • Rotary Hydraulic Motor Type: BM2-315

  • Traveling Hydraulic Motor Type: BM6-315


Additional Features:



  • Cabin: Enclosed with air conditioning

  • Side Swing: 30° angle

  • Bucket Capacity: 0.03 m³


Specific Data:













































Operation Weight980kg
EngineKubota（D722）
Travel speed low/high (km/h)0-1.8
Capacity of bucket0.03 m³
 Max Digging Depth1693mm
Max Digging Height2560mm

Max Load Height1800mm

Min Rotation Radius3060mm
Max Angle of Climb15°
Side Swing Angle30°

















































Total length 2925mm
Overall width 958mm
Total Height 2422mm
Maximum speed (rpm) 3600
Rated set pressure (Mpa) 25
Maximum power 10.2
Main pump type GP510803
Maximum flow rate of main pump(L/min) 21.6
Multi circuit valve4 mechanical + 4 hydraulic
Rotary hydraulic motor typeBM2-315
Traveling hydraulic motorBM6-315
